European H0 Accessories: Fleischmann triple block section unit 6957

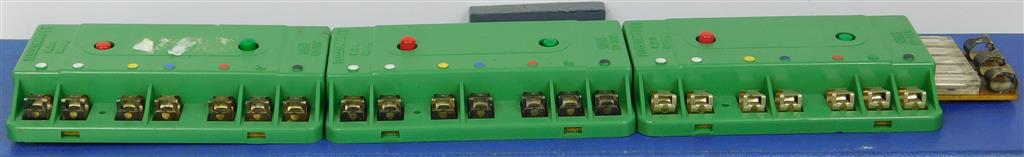

A Fleischmann block section unit 6957, tested and working, in good used condition. Full information (in German) here: https://www.fleischmann.de/uploads/Unternehmen/2/Relaunch_Website/Technik-Info_Blocksystem_6957-6958.pdf but in summary: connect 16v AC to the left hand two end terminals, connect one side track power to the third end terminal (yellow wire on diagram), connect a sensor (reed or contact switch) across the white terminals on the side, connect a signal (either a colour light signal or a semaphore which can take power even when fully moved) to the red green black terminals, connect 'always on' track power from the yellow connector on the side, connect 'switched' track power from the blue connector.

H0 gauge

Price: £60

Order number: 38274

Please click on a photo to zoom in - opens in new tab/window
